Application: Suitable for the transmission of heavy-duty abrasive materials in dust removal and suction equipment, industrial vacuum cleaners, air conditioning and ventilation technology, chemical industry, food processing industry, hygiene industry, ceramic industry, mining industry, and can meet the requirements of high wear resistance, high Strong and high softness usage requirements. Such as: solid abrasives (dust, fiber debris, etc.), active media (oil vapor, welding smoke, etc.).

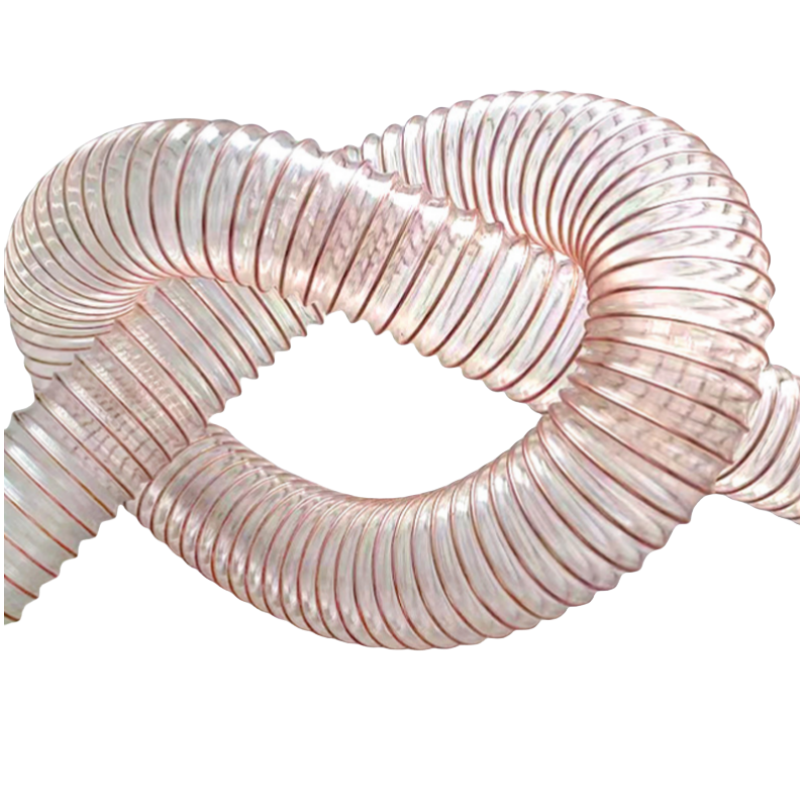

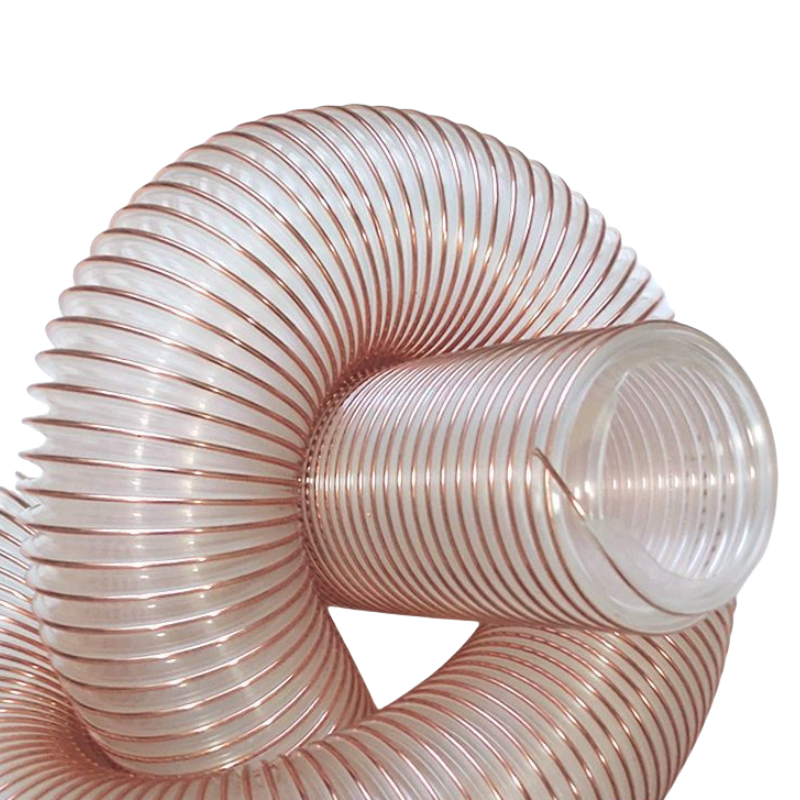

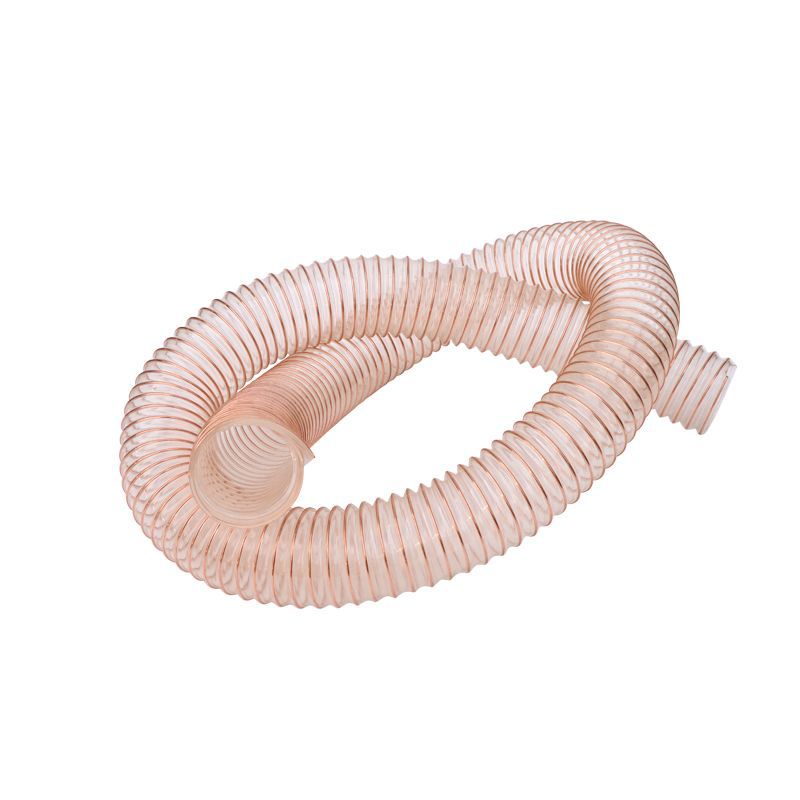

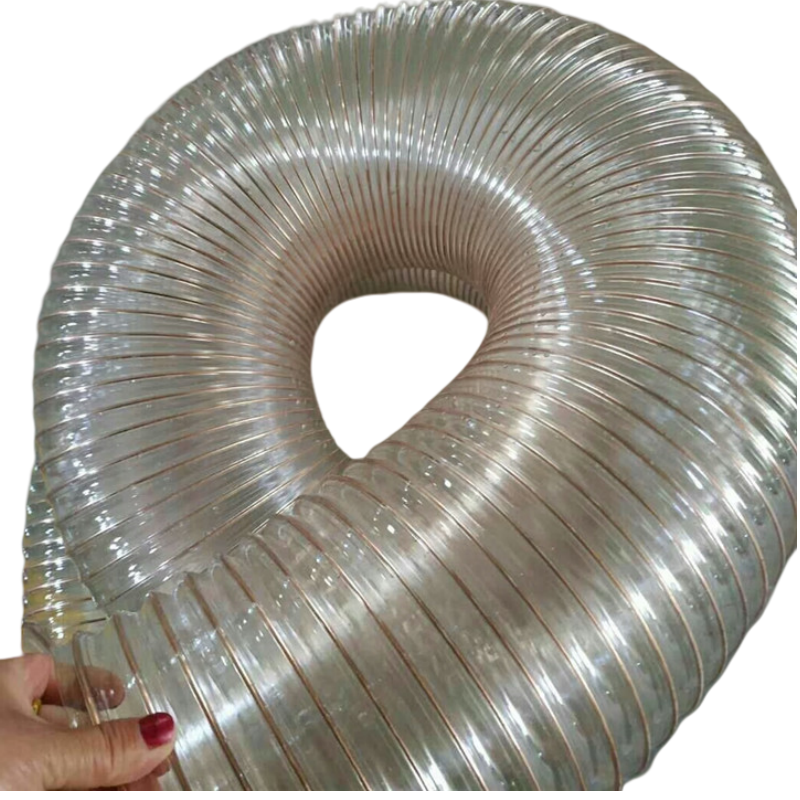

Features: This product is made of wear-resistant TPU material and high-strength synthetic ribs. It has the characteristics of light weight, softness, good elasticity, corrosion resistance, hydrolysis resistance, high transparency, non-toxic and tasteless, small bending radius, good negative pressure resistance, and can maintain its original shape in a vacuum state. It can maintain good flexibility at extremely low temperatures. It has super high strength and long service life.

Color: transparent, with ivory spiral plastic reinforcement (color can be customized);
specifications: ￠25mm–￠400mm;

Advantages: 1. The inner wall is very smooth and can reduce the resistance of flowing objects.

2. The hose can return to its original shape without deformation after being subjected to heavy pressure.

3. The reinforcing ribs are thick and firmly adhered to the pipe wall. The hose is not easily damaged when it is often dragged on the ground.

Operating temperature range: -40℃ to +90℃, up to 120℃ in a short time.

Specification sheet:

Product model Inner diameter Wall thickness Recommended operating limits Wall thickness Recommended operating limits standard length
(MM) (MM) Overpressure (bar) Vacuum(bar) (MM) Overpressure (bar) Vacuum(bar) (MM)
ACETECH-690-20 20 0.6 2.25 0.46 0.9 2.75 0.55 10-20
ACETECH-690-25 25 0.6 1.6 0.36 0.9 2.69 0.495 10-20
ACETECH-690-32 32 0.6 1.26 0.34 0.9 2.12 0.46 10-20
ACETECH-690-38 38 0.6 1.06 0.32 0.9 1.795 0.46 10-20
ACETECH-690-45 45 0.6 1.015 0.3 0.9 1.71 0.42 10-20
ACETECH-690-50 50 0.6 0.815 0.26 0.9 1.37 0.365 10-20
ACETECH-690-63 63 0.6 0.63 0.18 0.9 1.15 0.3 10-20
ACETECH-690-75 75 0.6 0.545 0.14 0.9 0.92 0.195 10-20
ACETECH-690-90 90 0.6 0.455 0.115 0.9 0.77 0.155 10-20
ACETECH-690-100 100 0.6 0.41 0.09 0.9 0.69 0.12 10-20
ACETECH-690-110 110 0.6 0.375 0.08 0.9 0.63 0.11 10-20
ACETECH-690-120 120 0.6 0.34 0.075 0.9 0.58 0.105 10-20
ACETECH-690-125 125 0.6 0.33 0.06 0.9 0.56 0.085 10-20
ACETECH-690-140 140 0.6 0.295 0.06 0.9 0.495 0.085 10-20
ACETECH-690-150 150 0.6 0.275 0.055 0.9 0.46 0.075 10-20
ACETECH-690-175 175 0.6 0.235 0.04 0.9 0.4 0.055 10-20
ACETECH-690-200 200 0.6 0.205 0.01 0.9 0.35 0.055 10-20
ACETECH-690-225 225 0.6 0.18 0.03 0.9 0.31 0.04 10-20
ACETECH-690-250 250 0.6 0.165 0.015 0.9 0.28 0.02 10-20
ACETECH-690-275 275 0.6 0.15 0.01 0.9 0.255 0.02 10-20
ACETECH-690-300 300 0.6 0.135 0.015 0.9 0.23 0.02 10-20
