Advantage

Diameter: 3/16″ to 1″
Temperature range: -70°C to +260°C
Standard and anti-static lining available.

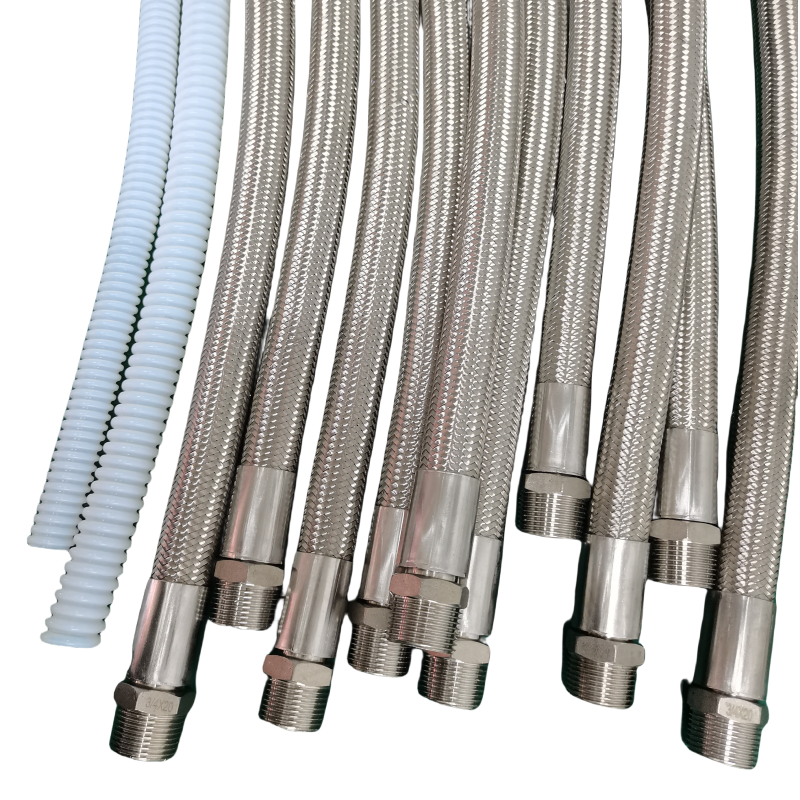

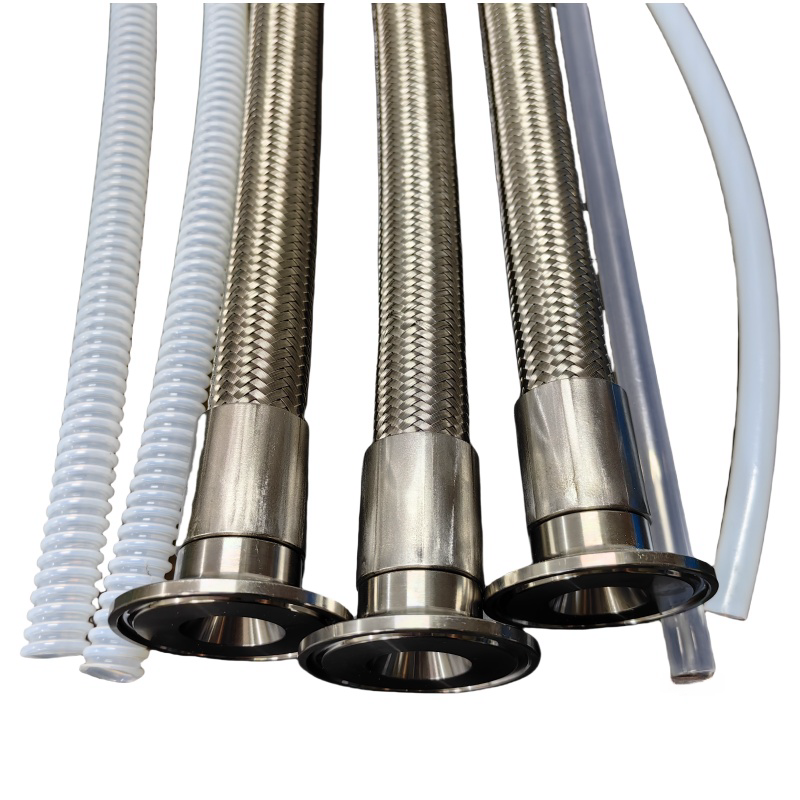

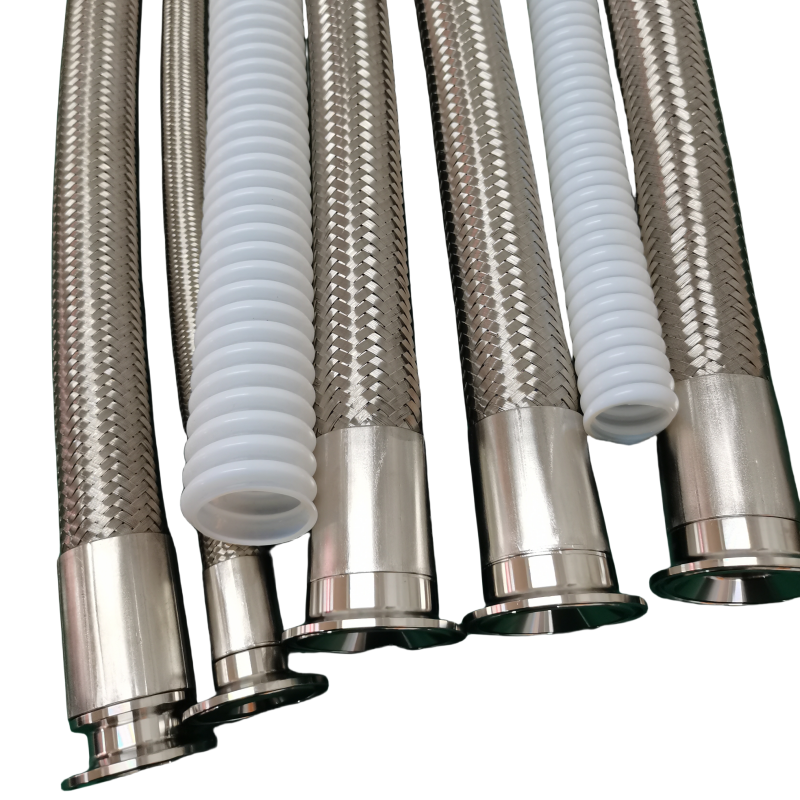

The inner layer is completely smooth PTFE hose, covered with SS304 stainless steel braid,
which has high flexibility and zero friction. , high pressure resistance and wide temperature resistance, in line with FDA and USP certification

Technical parameters:

Product number

caliber

wall thickness

bending radius

work pressure

Burst pressure

(mm)

(mm)

(mm)

(bar)

(bar)

ACETECH-560-005

5.10*8.05

0.9

64

264

793

ACETECH-560-006

6.70*9.34

0.75

76

224

672

ACETECH-560-008

8.40*11.05

0.65

102

207

621

ACETECH-560-010

10.30*13.40

0.65

127

183

552

ACETECH-560-013

13.40*16.60

0.9

152

161

483

ACETECH-560-016

16.60*19.85

0.9

178

114

345

ACETECH-560-020

19.80*23.15

1

203

103

310

ACETECH-560-022

22.10*25.35

1

229

92

276

ACETECH-560-026

26.10*29.75

1.2

305

80

241
