Shenglong’s brand: SHLONTUB platinum vulcanized silicone steel wire hose has imported quality and complete quality assurance qualification certificates. It can completely replace imported products, allowing more domestic business friends to buy affordable, domestically produced prices and imported quality. Shenglong is an OEM agent all year round. Industrial and export, domestic delivery cycle is fast, specifications and sizes are complete, colors and sizes can be customized according to customer requirements, welcome to visit the company for inspection and negotiation!

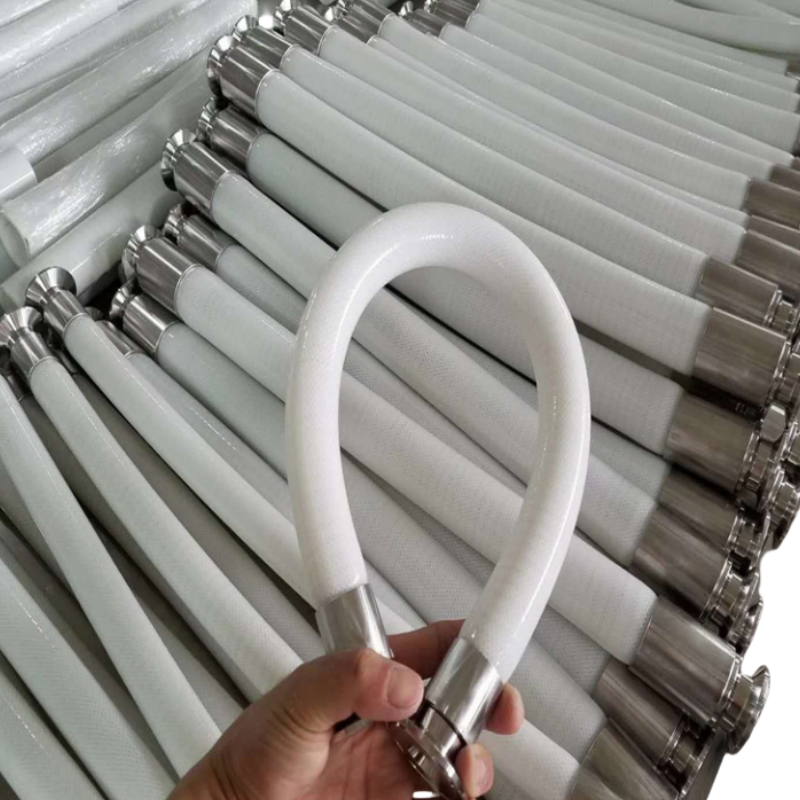

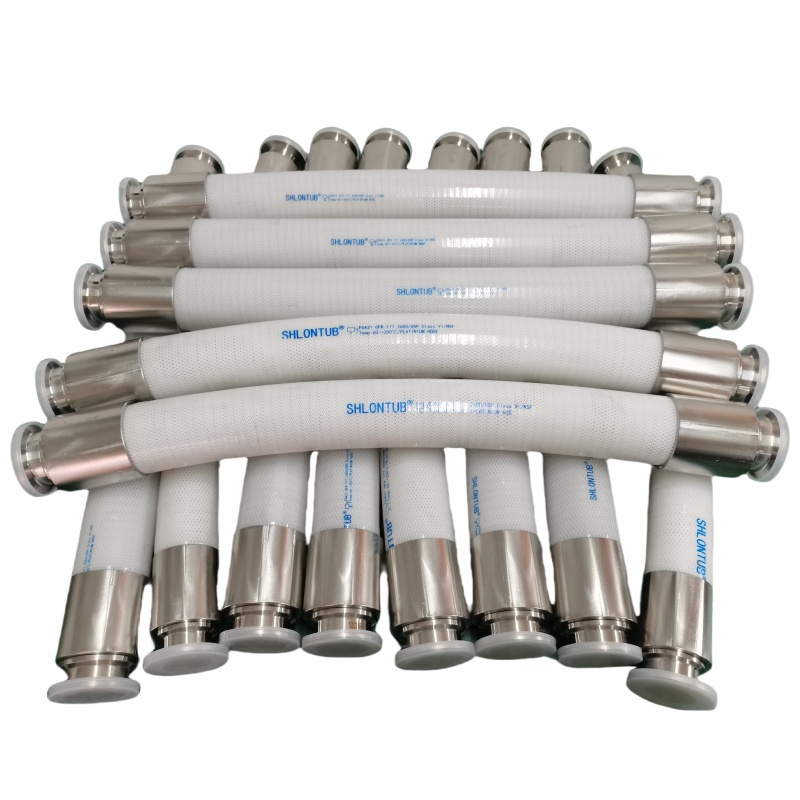

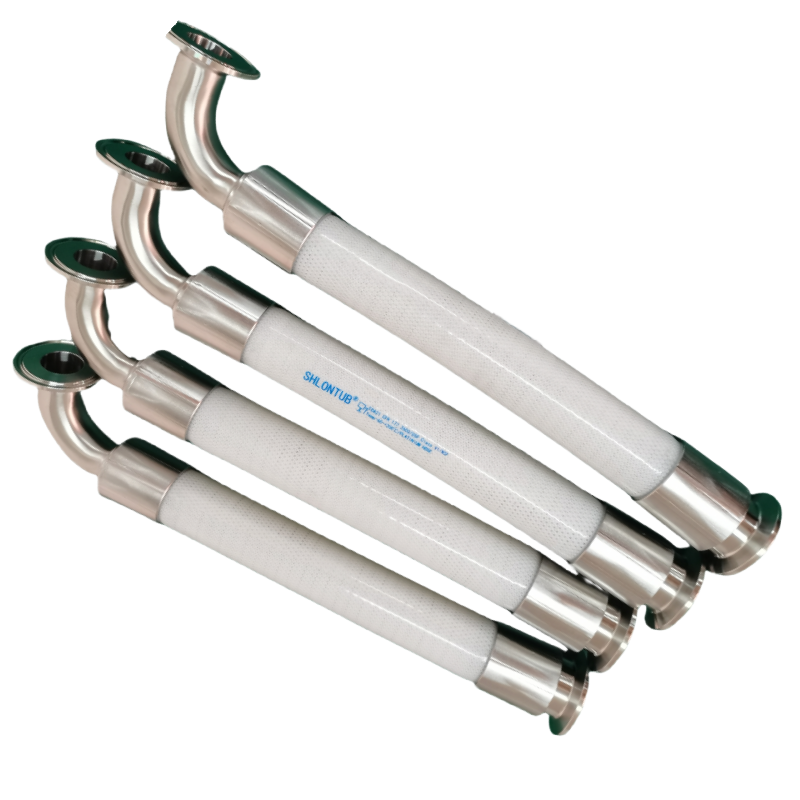

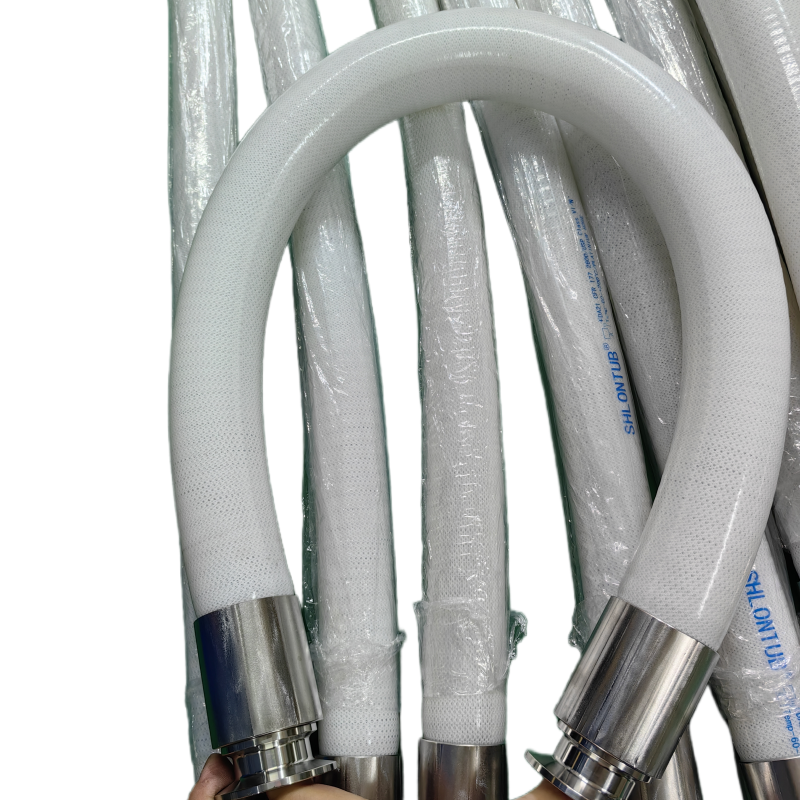

Platinum silicone steel wire hose assembly fittings——complete specifications

Application: Suction operation is possible, and it is widely used in various fixed or mobile equipment such as pharmaceutical and pharmaceutical machinery, food and beverage machinery, and steam transportation to transport food, beverages, drinking water, cosmetics, medicine, pharmaceuticals, intermediates, semi-finished products, and raw materials. Contour clean liquid

Advantages: Excellent hygiene level, resistant to high and low temperatures, very soft and easy to assemble, tasteless, odorless and odorless, does not contain phthalic acid plasticizers

Technical parameters

Inner and outer layer materials: pharmaceutical grade silicone
Reinforcement layer material: four layers of polyester fiber cloth and spiral steel wire reinforcement, resistant to vacuum and negative pressure suction

Color: white translucent Temperature: -60℃～200℃, standard CIP/SIP cleaning

Our company supports processing and customization. The attribute specifications and quotations of all products are for reference only, and the marked prices do not represent actual transaction prices. Due to different product models and specifications and fluctuations in raw material prices, product prices are subject to the contract agreed by both parties. We adhere to the principle of giving priority to large quantities. Please communicate with the staff before purchasing. Thank you!

Hygienic food-grade silicone hose: Stable American Dow Corning silicone hose is produced in our certified Class1000 clean room and forms the core of APSW hose. It is suitable for pharmaceutical, biomedical, cosmetic, and food processing applications. This inner core slips off the mandrel and is wrapped in polyester mesh braid and extra silicone. Vulcanized to create a uniform hose, it increases its ability to withstand pressure, making it ideal for drainage applications. APSW silicone tubes have undergone a large number of physical, chemical and biological tests and meet the standards of USPClassVI, FDACFR177.2600, ISO10993, NSF51, European Pharmacopoeia 3.1.9 and 3A.



Main features: Available in both smooth and corrugated outer walls; low breakdown silicone suitable for pharmaceutical, biomedical, cosmetic, and food processing applications; inner core made of NSF51 listed silicone material; hardness 70A; can be used in full vacuum; resistant to cracking and kinking ; Durable, withstands pressure; Translucent allows visual monitoring of media flow; Available in two types: smooth outer wall or pleated outer wall for higher elasticity;

Typical operating temperature range: from -40°C (-73.3°C) to 220°C; can be sterilized by CIP, SIP or radiation or autoclave; withstands extreme temperatures, compression, chemicals, ozone, radiation, moisture and environmental exposure; does not decompose any odor or taste to solution media; stocked as 12 feet in length; Produced in a tightly controlled environment and under strict good manufacturing procedures; Sealed in clear polyethylene bags for cleanliness during production;

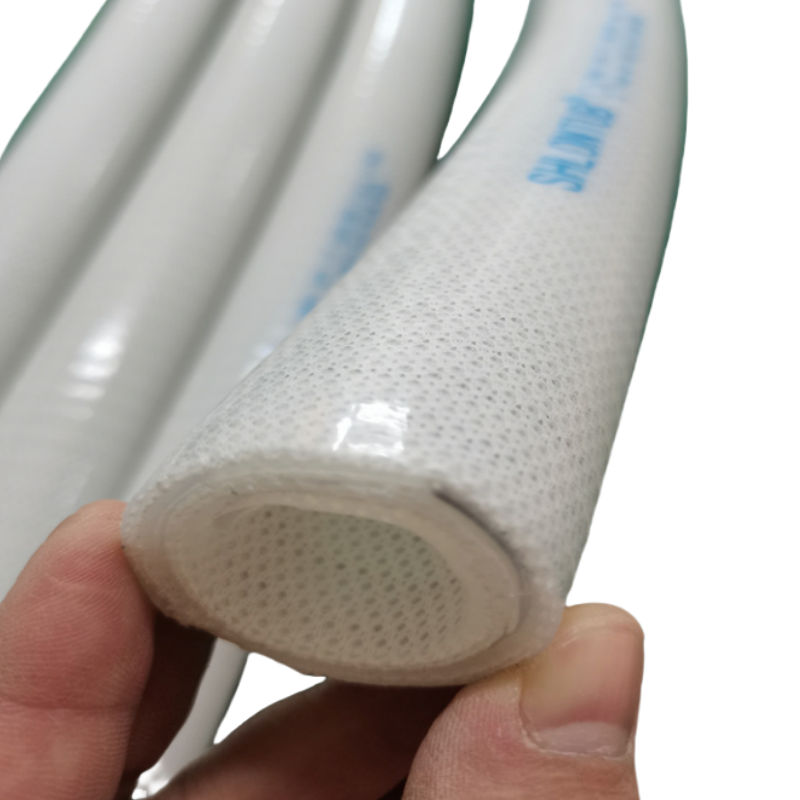

Fabric: Polyester fabric Four layers
Wire: Single layer 304 stainless steel wire, 6 spacing -10mm
inner wall: Transparent and smooth
outer wall: Transparent and smooth outer wall.
Standard length: 6 meters/pack, can be customized, and complies with US FDA-level standards.
Temperature resistance: -40°C~220°C
Scope of application: General pressure transmission fluids, such as pharmaceuticals, cosmetics, food, milk, juice, beverages, alcohol, water, etc.
Quick connector: Optional. Material food grade 304/316L sanitary connector.



Shenzhen Shenglong Fluid Equipment Co., Ltd. is a leading enterprise in the sanitary hose and food-grade hose industry. It adopts advanced German technology, equipment and research team to manufacture hoses that meet international standard quality, and its high-quality services will satisfy you.

We specialize in hygienic food grade hoses, pharmaceutical grade silicone hoses, PU polyurethane steel wire hoses, anti-static hoses, ventilation and vacuum hoses, etc.; we have been committed to the development of pharmaceutical grade hoses and food grade hose industries for more than ten years , the hoses produced have long been used in large biopharmaceutical factories, wineries, food companies, and engineering machinery factories; the quality is stable and sold overseas, enjoying a good reputation in this industry. Its food-grade hose products have passed FDA certification and are certified plasticizer-free; pharmaceutical-grade silicone hoses fully comply with United States Pharmacopeia (USP) specifications; they exceed 3-A health standards and U.S. Food and Drug Administration (FDA) specifications; Shenzhen Sheng SHLONTUB has passed ISO9001:2008 quality management system certification in 2014 and obtained multiple patent certificates; our company is also managed strictly in accordance with international SWOT. Our factory also continuously researches and develops new products to meet market demand. We always adhere to the business philosophy of “survive by quality, develop by innovation, and cooperate by integrity.” and serve you wholeheartedly.

Wedevelopourcareerwithabsorbingall the best things!
